Temperature Transmitter: How It Works, Accuracy and Selection

What Is a Temperature Transmitter and How Does It Work?

A temperature transmitter works by receiving the electrical output from a temperature sensing element, processing it through internal signal conditioning and linearization circuitry, and generating a standardized output proportional to the measured temperature. The internal architecture of a modern digital temperature transmitter consists of four functional stages that together transform a raw, nonlinear sensor signal into an accurate, noise resistant output suitable for long distance transmission and direct processing by a distributed control system or programmable logic controller.

The Four Internal Stages of a Temperature Transmitter

The signal processing chain inside a modern industrial temperature transmitter follows a consistent architecture regardless of whether the input is from a thermocouple, RTD, or other sensor type:

• Input signal acquisition: The transmitter's input circuit receives the sensor signal, which may be a millivolt level EMF from a thermocouple (typically 0 to 60 mV depending on type and temperature range) or a resistance value from an RTD (typically 100 to 400 ohms for a Pt100 sensor across its measurement range). The input circuit provides the excitation current for RTD sensors (typically 0.2 to 1.0 mA to minimize self heating error) and applies high input impedance amplification to thermocouple millivolt signals to avoid loading the sensor output.
• Analog to digital conversion: The amplified input signal is converted to a digital representation by a high resolution analog to digital converter, typically with 16 to 24 bit resolution. This high resolution ensures that the transmitter can resolve very small temperature changes within its configured measurement span. A 16 bit converter across a 100 degree Celsius span resolves individual temperature changes of approximately 0.0015 degrees Celsius, which is far finer than the ultimate measurement uncertainty of the system but provides the internal precision needed to maintain accuracy after linearization and output computation.
• Linearization and compensation: The digital processor applies the sensor specific characterization polynomial stored in the transmitter's memory to convert the raw digital value to a temperature value. This linearization step is essential because neither thermocouple EMF versus temperature nor RTD resistance versus temperature relationships are linear; the characterization polynomials defined in the IEC 60584 standard for thermocouples and IEC 60751 standard for Pt RTDs compensate for these nonlinearities. For thermocouple transmitters, this stage also applies the cold junction compensation that accounts for the reference junction temperature at the transmitter terminals, which must be measured and subtracted from the thermocouple output to produce an accurate process temperature reading.
• Output generation: The linearized temperature value is used to compute the output current by mapping the measured temperature linearly onto the 4 to 20 mA current range. The transmitter drives a precision current source that maintains the computed current output independently of the loop supply voltage and cable resistance, providing the voltage independent current loop signal that the receiving instrument sees as the process variable.

How a Temperature Transmitter Works with Thermocouples?

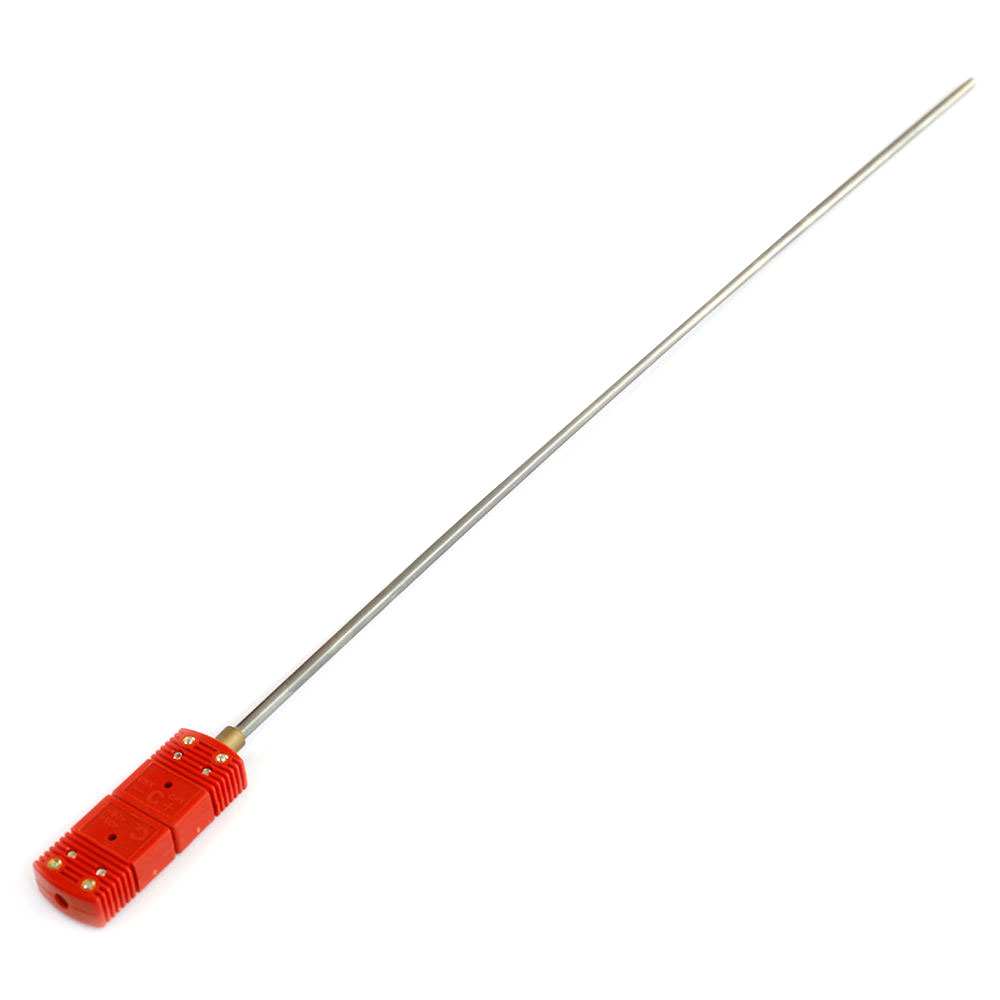

A thermocouple is a junction of two dissimilar metal wires that generates a small electromotive force (EMF) proportional to the temperature difference between the measurement junction (the hot junction, placed at the process measurement point) and the reference junction (the cold junction, located at the point where the thermocouple wire transitions to copper conductors, typically at the transmitter's input terminals). The thermocouple does not measure absolute temperature; it measures a temperature difference, and the temperature transmitter must add the reference junction temperature to convert this difference to an absolute process temperature.

Modern temperature transmitters include an internal cold junction compensation sensor, typically a precision thermistor or silicon bandgap sensor, mounted at the thermocouple input terminals. This sensor measures the actual temperature of the transmitter input terminals and adds this reference junction temperature to the measured thermocouple EMF during the linearization calculation. The accuracy of cold junction compensation is a significant contributor to the overall measurement uncertainty of thermocouple transmitter systems, and high quality transmitters specify their cold junction compensation accuracy separately from the transmitter's signal conditioning accuracy. A cold junction compensation error of 0.5 degrees Celsius adds directly to the overall measurement error regardless of the quality of all other system components.

The choice of thermocouple type determines the measurement range, sensitivity, and chemical compatibility characteristics of the sensor transmitter combination. The most common types used with industrial temperature transmitters are:

• Type K (Chromel/Alumel): The most widely used industrial thermocouple, covering a range of approximately 200 to 1,260 degrees Celsius with a Seebeck coefficient of approximately 41 microvolts per degree Celsius. Type K is suitable for oxidizing and inert atmospheres and provides adequate accuracy for most industrial temperature monitoring applications.
• Type J (Iron/Constantan): Suitable for reducing or vacuum atmospheres, with a range of 40 to 750 degrees Celsius and a Seebeck coefficient of approximately 51 microvolts per degree Celsius. The higher output per degree compared to Type K means smaller transmitter input signals to process, but the iron conductor limits the maximum temperature and the permissible atmosphere.
• Type T (Copper/Constantan): Used for cryogenic and low temperature measurements from 200 to 350 degrees Celsius, with excellent repeatability at temperatures below 0 degrees Celsius, making it the preferred choice for cold room and cryogenic storage monitoring applications.
• Type R and Type S (Platinum/Rhodium alloys): Noble metal thermocouples used at high temperatures from 0 to 1,600 degrees Celsius in applications such as glass, ceramics, and steel production where base metal thermocouples would not survive. Their lower Seebeck coefficients (approximately 10 microvolts per degree Celsius) require high resolution transmitter input amplification to achieve adequate accuracy.

RTD Input Processing in Temperature Transmitters

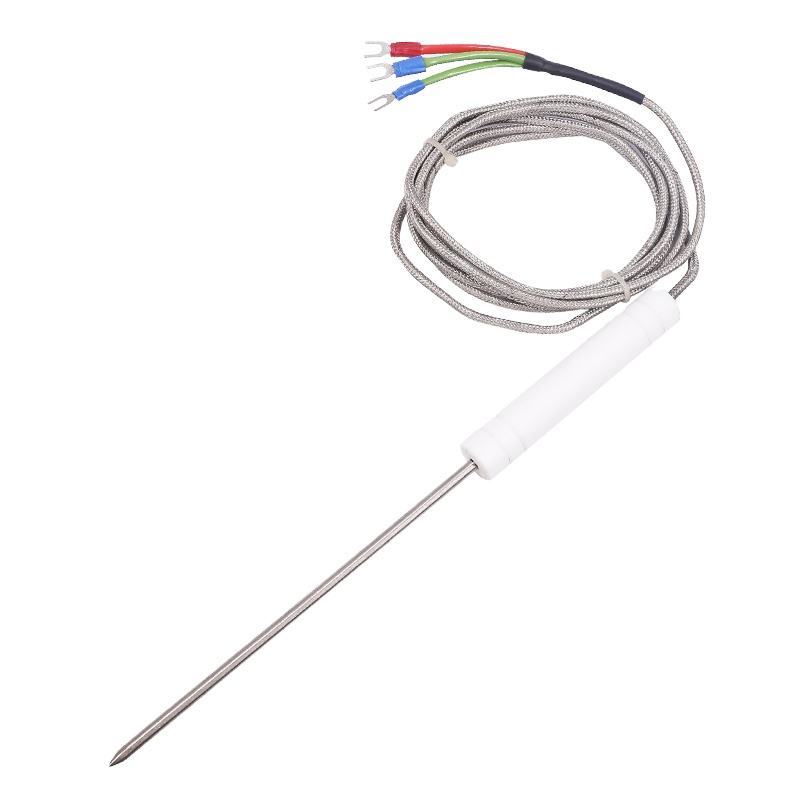

Resistance temperature detectors (RTDs) operate on a fundamentally different physical principle from thermocouples, measuring the increase in electrical resistance of a pure metal element (platinum in the Pt100 and Pt1000 types) as temperature increases. The transmitter supplies a small known current through the RTD element and measures the resulting voltage to calculate the resistance, then applies the Callendar Van Dusen equation or the IEC 60751 characterization polynomial to convert this resistance to temperature.

Three wire and four wire RTD connection configurations are used to eliminate the effect of lead wire resistance on the measurement accuracy. In a two wire configuration, the lead wire resistance (which varies with ambient temperature and wire length) adds directly to the measured RTD resistance and introduces an error that cannot be corrected. In a three wire configuration, the transmitter uses a Wheatstone bridge or equivalent circuit that cancels the lead resistance of the common return wire, reducing the error to the difference in resistance between the two separate lead wires. In a four wire configuration, separate current carrying and voltage sensing wire pairs completely eliminate the effect of lead wire resistance on the measurement, achieving the full intrinsic accuracy of the RTD sensor. Four wire connections are standard for laboratory and high accuracy process applications; three wire connections are common in industrial installations where some residual lead resistance error is acceptable.

How Accurate Are Temperature Transmitters?

The accuracy of a temperature transmitter system is a composite of multiple individual error sources that each contribute to the total measurement uncertainty. Understanding these error sources and how they combine is essential for selecting a transmitter with adequate accuracy for a specific application, and for interpreting the accuracy specifications stated in transmitter datasheets.

Transmitter Accuracy Components

A complete temperature transmitter system accuracy budget includes contributions from the following sources:

• Sensor accuracy: The IEC 60751 standard defines two classes of Pt100 RTD accuracy. Class A sensors have accuracy of plus or minus (0.15 + 0.002 times the absolute value of T) degrees Celsius, where T is the temperature in degrees Celsius, which yields approximately plus or minus 0.25 degrees Celsius at 50 degrees Celsius and plus or minus 0.55 degrees Celsius at 200 degrees Celsius. Class B sensors have twice the tolerance of Class A. Thermocouple accuracy under IEC 60584 is expressed as a percentage of reading or a fixed value in degrees Celsius, whichever is larger: a standard Class 1 Type K thermocouple has accuracy of plus or minus 1.5 degrees Celsius or plus or minus 0.4 percent of reading, whichever is greater.
• Transmitter reference accuracy: The transmitter's own signal conditioning accuracy, specified at a reference ambient temperature (typically 20 to 25 degrees Celsius) under stable conditions. High quality industrial temperature transmitters from manufacturers such as Emerson Rosemount, ABB, Endress+Hauser, and Yokogawa achieve reference accuracy specifications of plus or minus 0.05 to 0.1 degrees Celsius for RTD inputs and plus or minus 0.1 to 0.5 degrees Celsius for thermocouple inputs, making the transmitter a relatively small contributor to total system uncertainty when high accuracy sensors are used.
• Ambient temperature effect: Transmitter accuracy degrades as its operating temperature departs from the reference temperature. Typical transmitter ambient temperature effects are specified as a change in output per degree Celsius of ambient temperature change, often in the range of 0.005 to 0.02 degrees Celsius per degree Celsius of ambient change. In a transmitter housed in a field enclosure that may experience ambient temperatures from minus 20 to plus 60 degrees Celsius, the ambient temperature effect can add 0.4 to 1.6 degrees Celsius of additional uncertainty to the total measurement error.
• Long term drift: Temperature transmitter accuracy drifts gradually over time due to electronic component aging and mechanical stress from thermal cycling. Well designed industrial transmitters specify long term stability of plus or minus 0.1 to 0.25 percent of span over a 10 year service period, which translates to less than 0.1 degrees Celsius of drift per year for a typical 100 degree Celsius measurement span. Verification of drift through periodic calibration check is the standard practice for maintaining measurement integrity over the transmitter's service life.

Practical Accuracy in Process Applications

The combined accuracy of a well matched sensor and transmitter system in a typical industrial process installation, accounting for all error sources, typically falls in the range of plus or minus 0.5 to 2 degrees Celsius for RTD based systems and plus or minus 1.5 to 5 degrees Celsius for thermocouple based systems. The larger uncertainty range for thermocouple systems reflects the combination of the sensor's own lower inherent accuracy, the cold junction compensation error at the transmitter, and the greater susceptibility of thermocouple EMF measurements to electrical interference.

For applications requiring measurement uncertainty below plus or minus 0.5 degrees Celsius, select a Pt100 RTD with Class A or 1/3 DIN tolerance, connect it in four wire configuration, use a high accuracy transmitter specified for RTD input, and install the transmitter in a location with stable and moderate ambient temperature. Four wire Pt100 systems from leading manufacturers can achieve combined measurement uncertainty of plus or minus 0.2 to 0.3 degrees Celsius in well controlled installations, suitable for pharmaceutical, food, and precision process applications where tighter temperature control is required.

Accuracy Comparison: Thermocouple vs RTD Transmitter Systems

Integrated Temperature Transmitters: Design and Advantages

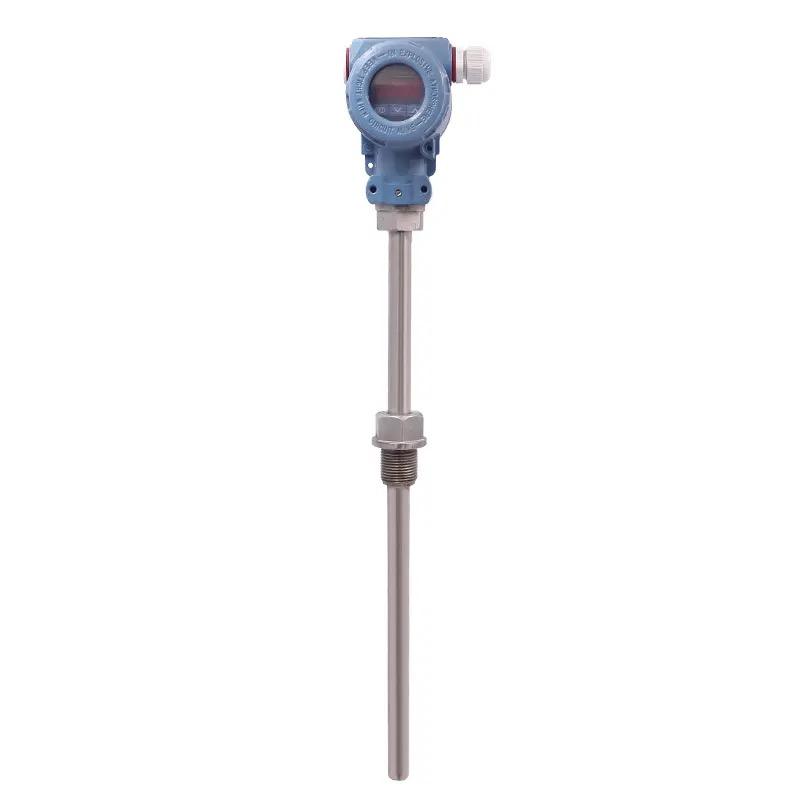

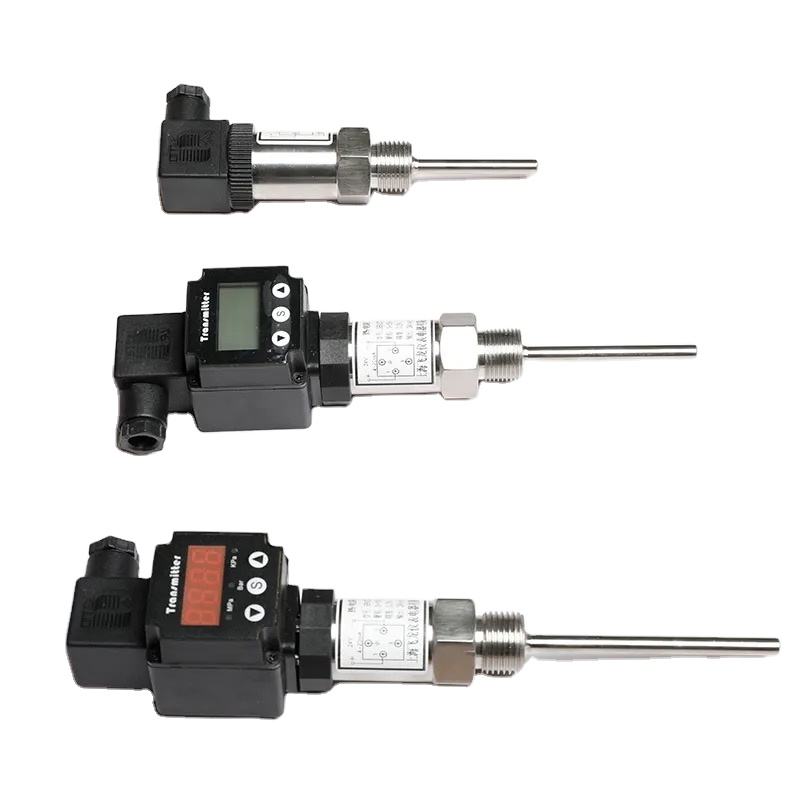

An integrated temperature transmitter combines the sensing element and the transmitter electronics into a single physical assembly, typically mounted directly on the thermowell or in the head of the temperature sensor assembly. This integrated approach contrasts with the traditional split architecture where a separate remote sensor connects to a separately mounted transmitter through an extension cable, and it provides several practical and performance advantages that have made integrated transmitters the preferred configuration for most new industrial process temperature installations.

Physical Configurations of Integrated Temperature Transmitters

Integrated temperature transmitters are available in two primary physical configurations:

• Head mounted transmitters: A compact transmitter module mounted inside the connection head of a thermowell mounted temperature sensor assembly. The transmitter module typically occupies a DIN B or DIN A format housing that fits within the standard connection head, and the sensor leads connect directly to the transmitter terminals within the sealed head enclosure. Head mounted transmitters eliminate the extension wire run between sensor and transmitter, removing the sources of EMF pickup, lead resistance error, and connector induced measurement degradation that affect extended wire systems. They output the standard 4 to 20 mA current loop signal on two wires that exit the connection head to the control system, requiring only standard control cable rather than the specialized extension wire or thermocouple extension wire required in split architecture systems.
• Rail mounted or DIN rail transmitters: Compact transmitter modules designed for mounting on standard DIN 35 rail inside instrument cabinets or marshaling panels, typically receiving sensor inputs from remote field sensors over short to moderate cable runs. These transmitters accept the same range of sensor inputs as head mounted types but are located in the controlled environment of an instrument cabinet, reducing the ambient temperature variation they experience and simplifying access for configuration and replacement. Rail mounted transmitters are commonly used in grouped applications where multiple sensors feed into a single cabinet, and in installations where the process connection location does not permit mounting a head mounted transmitter due to temperature, vibration, or access constraints.

Performance Advantages of Integrated Transmitters

The integrated architecture delivers measurable performance improvements over split sensor transmitter systems in several areas that directly affect measurement quality and system reliability:

• Elimination of thermocouple extension wire errors: Thermocouple extension wire carries the thermocouple's millivolt signal from the sensor head to the remote transmitter or control system. Any break, connector, or ground loop in this extension wire introduces errors that are indistinguishable from legitimate temperature signals at the receiving instrument. Head mounted transmitters eliminate the extension wire entirely by converting the millivolt signal to a 4 to 20 mA current loop signal at the sensor head, and the current loop signal is completely immune to the noise and leakage errors that corrupt millivolt signals over long runs.
• Improved noise immunity: The 4 to 20 mA current loop output of the integrated transmitter is far more resistant to electromagnetic interference (EMI) from nearby motors, variable frequency drives, and power cables than the millivolt sensor signals carried over long extension wires. In industrial environments with significant electrical noise, this noise immunity improvement often produces a measurable reduction in measurement variability, translating directly to more stable process control.
• Reduced wiring costs: Standard shielded twisted pair cable used for 4 to 20 mA current loop connections costs 40 to 60 percent less per meter than the specialized thermocouple extension wire required for uncompensated thermocouple long runs. For large installations with hundreds of temperature measurement points at distances of 50 meters or more from the control room, this cabling cost difference represents a significant capital cost saving that partially or fully offsets the higher unit cost of head mounted transmitters compared to simple terminal heads.

Choosing the Right Temperature Transmitter for Process Control

Selecting the correct temperature transmitter for a process control application requires matching the transmitter's specifications to the measurement requirements of the application across multiple dimensions simultaneously. The following framework addresses the key selection criteria in a practical decision sequence.

Sensor Type and Measurement Range

The first selection decision is the sensor type, which determines the fundamental accuracy potential, measurement range, and environmental compatibility of the system. Use RTD (Pt100 or Pt1000) sensors and compatible transmitters for applications requiring measurement accuracy better than plus or minus 1 degree Celsius, for temperatures below 600 degrees Celsius, and where long term stability over years of continuous service is required. Use thermocouple sensors and compatible transmitters for temperatures above 600 degrees Celsius, for applications where fast response to rapid temperature changes is needed, or where the cost of RTD sensors is prohibitive for a large number of measurement points.

Universal input transmitters that accept both thermocouple and RTD inputs are available from most major manufacturers and are particularly valuable in facilities with diverse sensor inventories or in retrofit applications where the existing sensor type may not be known at the time of transmitter procurement. Universal input transmitters typically sacrifice a small increment of accuracy compared to sensor specific transmitters due to the compromises involved in designing input circuits to handle both the millivolt level thermocouple signal and the resistance measurement required for RTD inputs, but modern designs have reduced this accuracy penalty to less than 0.05 degrees Celsius in most cases.

Output Protocol and Communication Requirements

The transmitter's output protocol must be compatible with the receiving control system infrastructure:

• 4 to 20 mA analog only: Appropriate for older DCS and PLC systems without digital field communication capability, or for simple applications where only the current process temperature value is required at the control system and no diagnostic data needs to be transmitted. The analog only transmitter is the simplest and lowest cost option, requiring only a standard analog input card in the receiving control system.
• 4 to 20 mA with HART: The HART protocol (Highway Addressable Remote Transducer) superimposes a digital signal on the 4 to 20 mA current loop, allowing configuration, diagnostics, and secondary process variable data to be communicated to a HART compatible asset management system while the primary 4 to 20 mA signal continues to operate with existing analog input infrastructure. HART capable transmitters are the dominant choice for new industrial temperature transmitter installations worldwide because they provide digital diagnostic capability without requiring replacement of existing analog wiring infrastructure.
• Foundation Fieldbus or PROFIBUS PA: Pure digital field buses that replace the 4 to 20 mA current loop with an all digital communication protocol carrying multiple process variables, diagnostics, and configuration parameters over a single pair of wires that can connect multiple devices in a bus topology. Appropriate for new installations where the control system supports these protocols and the benefits of multivariable measurement and comprehensive diagnostics from a single wire pair justify the higher installation engineering cost compared to analog or HART systems.
• Wireless (WirelessHART or ISA100): Wireless temperature transmitters that communicate measurements to a wireless gateway without any signal cable, powered by batteries or energy harvesting from the process environment. Wireless transmitters are particularly valuable in retrofit applications where running new signal cables to inaccessible or hazardous locations would be prohibitively expensive, and in applications monitoring assets that move or rotate, where wired connections are impractical.

Environmental and Process Conditions

The physical environment in which the transmitter will be installed imposes requirements on the transmitter's housing, ingress protection rating, and hazardous area certification:

• Ingress protection: The transmitter housing must carry a minimum IP65 rating (dust tight and protected against water jets) for outdoor installations and wash down environments; IP67 (submersion to 1 meter) for applications with water flooding risk; and IP68 (continuous submersion) for transmitters installed in submerged locations. The IP rating of the connection head and any cable entries must be verified, as the transmitter electronics may carry a higher IP rating than the entry fittings actually used in the installation.
• Hazardous area certification: Transmitters installed in areas classified as potentially explosive under national or international hazardous area classification standards must carry the appropriate certification for the specific area classification. The most common hazardous area protection methods for temperature transmitters are intrinsic safety (Ex ia or Ex ib) for use in Zones 0, 1, and 2 (gas hazard), and flameproof and explosion proof enclosures (Ex d) for applications where higher power transmitters are required. Verify that the transmitter's specific approval covers the gas group and temperature class applicable to the installation location.
• Vibration and shock resistance: In installations subject to process machinery vibration, select transmitters tested and rated for the expected vibration frequency and amplitude. Transmitters for compressor, pump, and turbine monitoring applications should be rated to IEC 60068 2 6 vibration testing standards with vibration levels of at least 2g across the 10 to 2,000 Hz frequency range to avoid premature failure from vibration induced component fatigue.

Key Selection Parameters Summary

How to Troubleshoot a Temperature Transmitter?

Temperature transmitter troubleshooting follows a logical diagnostic sequence that systematically isolates the fault to the sensor, the wiring, or the transmitter electronics before reaching conclusions about which component requires attention. Approaching transmitter problems without this systematic structure leads to unnecessary component replacements and extended process downtime. The following sequence covers the most common fault categories in industrial temperature transmitter installations.

Constant Maximum or Minimum Output (Saturated Signal)

A transmitter output locked at 20.5 mA (or the transmitter's upscale failure current) or at 3.6 mA (downscale failure current) indicates that the transmitter has detected an out of range condition or a sensor fault and has driven its output to a preset failsafe value. Diagnose as follows:

1. Check for active fault codes: Connect a HART communicator or the manufacturer's configuration software to the transmitter and read any active fault diagnostics. The transmitter's self diagnostic system will typically identify whether the fault is an open sensor input, a short circuit at the sensor input, sensor input out of range, or an internal transmitter hardware fault. This diagnostic information immediately directs the investigation to the correct component without requiring physical inspection of every element in the measurement loop.
2. Measure sensor continuity at the transmitter terminals: Disconnect the sensor leads from the transmitter input terminals and measure the sensor resistance (for RTD) or continuity (for thermocouple) at the terminal screws with a calibrated multimeter. A Pt100 RTD at ambient temperature should measure approximately 109 to 110 ohms for every 25 degrees Celsius above the sensor's 0 degree reference; an open circuit reading indicates a broken RTD element or a severed sensor lead. A thermocouple at ambient temperature should produce a very low resistance reading (typically 1 to 10 ohms depending on the thermocouple material and length); an open circuit indicates a broken thermocouple junction or wire.
3. Reconnect the sensor and check the reading against a reference: If the sensor measures correctly at the transmitter terminals but the transmitter output is still saturated, verify that the transmitter's configured measurement span is appropriate for the actual process temperature. A correctly operating transmitter receiving a sensor signal for a temperature outside its configured range will saturate its output; reducing the measurement range or reconfiguring the span to include the actual process temperature should restore normal operation.

Noisy or Unstable Output

An output that fluctuates rapidly beyond what the process temperature itself could account for indicates electrical noise pickup in the sensor or transmitter wiring, a loose connection, or a moisture ingress problem in the transmitter housing or sensor connection head. Investigate the following in order:

• Check shield grounding: Verify that the sensor cable shield is grounded at one end only (typically at the control room or marshaling cabinet end), with the field end of the shield unterminated. Grounding the shield at both ends creates a ground loop that can inject noise into the measurement circuit at the same frequencies as the interfering source. Correcting double grounded shields frequently resolves transmitter noise problems without any other intervention.
• Inspect connection terminals for moisture and corrosion: Open the transmitter connection head and inspect all terminal screws and connections for moisture accumulation, corrosion products, or loose terminal screws. Moisture between thermocouple extension wire terminals and grounded metalwork creates leakage currents that appear as noise in the measurement. Dry the connection head with dry compressed air, treat corroded terminals with contact cleaner, and tighten all terminal screws to the specified torque before reassembling the head with a fresh cable entry seal.
• Separate sensor cables from power cables: Verify that the sensor cable is routed separately from power cables, variable frequency drive cables, and other high noise sources throughout its run from the sensor to the transmitter or control room. Parallel routing of sensor and power cables creates inductive and capacitive coupling that injects noise into the measurement signal; maintaining a separation of at least 300 mm from power cables, or placing sensor cables in a separate metallic conduit, eliminates this coupling path.

Reading Offset: Consistent Measurement Error

A temperature transmitter that produces a reading consistently above or below the actual process temperature by a fixed offset across the measurement range, confirmed by comparison with a calibrated reference thermometer in the same process, indicates either a transmitter calibration drift, an incorrect transmitter configuration, or a systematic error source such as lead resistance in an uncompensated two wire RTD connection. Verify the transmitter configuration parameters (sensor type, connection type, span, and zero) against the original commissioning documentation before performing a calibration check, as configuration errors introduced during maintenance are a common and easily corrected cause of systematic reading offsets. If the configuration is confirmed correct, perform a two point calibration check using a precision temperature source and a certified reference transmitter or calibrator to characterize the magnitude and temperature dependence of the offset, and apply a calibration correction or replace the transmitter if the offset exceeds the application's accuracy requirement.

Maintaining Temperature Transmitters for Industrial Applications

A disciplined temperature transmitter maintenance program sustains measurement accuracy, prevents unexpected measurement failures that disrupt process control, and maximizes the useful service life of the instrument investment. The maintenance program for industrial temperature transmitters covers periodic calibration verification, physical inspection, diagnostic data review for predictive maintenance, and planned replacement of sensor components that experience accelerated aging in service.

Calibration Verification Schedule

The calibration verification interval for temperature transmitters should be established based on the application's accuracy requirement, the transmitter's specified long term stability, and the consequences of undetected measurement error for process control quality and safety. Typical calibration verification intervals for industrial temperature transmitters range from 6 months for safety critical measurements where any drift above plus or minus 0.5 degrees Celsius must be detected promptly, to 2 to 5 years for non critical monitoring measurements where the transmitter's long term stability specification (typically plus or minus 0.1 to 0.25 percent of span per year from leading manufacturers) justifies longer intervals between checks.

Calibration verification should be performed using a calibrated temperature source (dry block calibrator or temperature bath) traceable to national measurement standards, with a calibrated reference thermometer of higher accuracy than the transmitter being checked serving as the comparison standard. Record the as found and as left readings at a minimum of two temperature points within the configured span (typically at 25 percent and 75 percent of span) to characterize both zero offset and span error. Document all calibration results in the instrument's calibration record and trend the results over successive calibrations to identify gradual drift that may indicate deteriorating sensor condition before it becomes a measurement problem.

Physical Inspection and Preventive Maintenance

The physical inspection program for temperature transmitters should include the following checks at each scheduled maintenance visit:

• Enclosure integrity: Inspect the transmitter housing for physical damage, corrosion, or deterioration of protective coatings. Verify that all cable entries are sealed with the original rated cable glands and that the gaskets on the transmitter cover are undamaged and making complete contact. Replace deteriorated gaskets to maintain the housing's ingress protection rating.
• Terminal connections: Inspect all terminal connections for tightness, corrosion, and the presence of any moisture in the connection head. Retighten terminal screws to the specified torque; corrosion at terminal connections is a progressive fault that produces increasing measurement error over time and eventual open circuit failure if not addressed.
• Thermowell condition (where fitted): Inspect the thermowell for external corrosion, mechanical damage from flow induced vibration (visible as wear or cracking at the process connection), and internal cleanliness. A thermowell with significant wall thinning from corrosion creates a risk of process fluid release on the failure of the remaining wall, requiring replacement before the measurement protection function of the thermowell is compromised.
• Sensor element condition: For exposed RTD and thermocouple elements, inspect the protective sheath for mechanical damage, corrosion pitting, and any signs of process fluid contamination of the sensor cavity. Compare the current sensor resistance (for RTD) or insulation resistance (for thermocouple sheath) against baseline values recorded at commissioning; degraded insulation resistance in the thermocouple sheath (below 1 megohm at the operating temperature) indicates moisture ingress or sheath deterioration that will produce measurement errors and requires sensor replacement.

Using Diagnostic Data for Predictive Maintenance

HART capable and digital fieldbus temperature transmitters continuously generate diagnostic data that can be used to identify developing problems before they cause measurement failures. Modern integrated temperature transmitters monitor and report parameters including the cold junction temperature, the sensor resistance (for RTD inputs), the loop supply voltage, the transmitter's internal electronic temperature, and the total operating hours since last reset. Reviewing these diagnostic parameters through an asset management system during normal operations, rather than waiting for the transmitter to flag an alert, enables predictive maintenance approaches that schedule sensor replacement based on actual condition indicators rather than fixed calendar intervals.

A progressive increase in RTD sensor resistance above its expected value for the process temperature, observed in diagnostic data over successive readings, is an early indicator of sensor element contamination or mechanical damage that will eventually produce a significant measurement error or open circuit failure. Scheduling sensor replacement at the next planned maintenance window when this trend is first identified, rather than waiting for a complete measurement failure, avoids the process disruption associated with an unscheduled sensor replacement during production. This predictive approach to temperature transmitter maintenance is one of the most cost effective applications of the digital diagnostic capability built into modern industrial temperature transmitters.
